1. Open your design in the PCB Preflight editor.
2. Select Search from the left side toolbar.

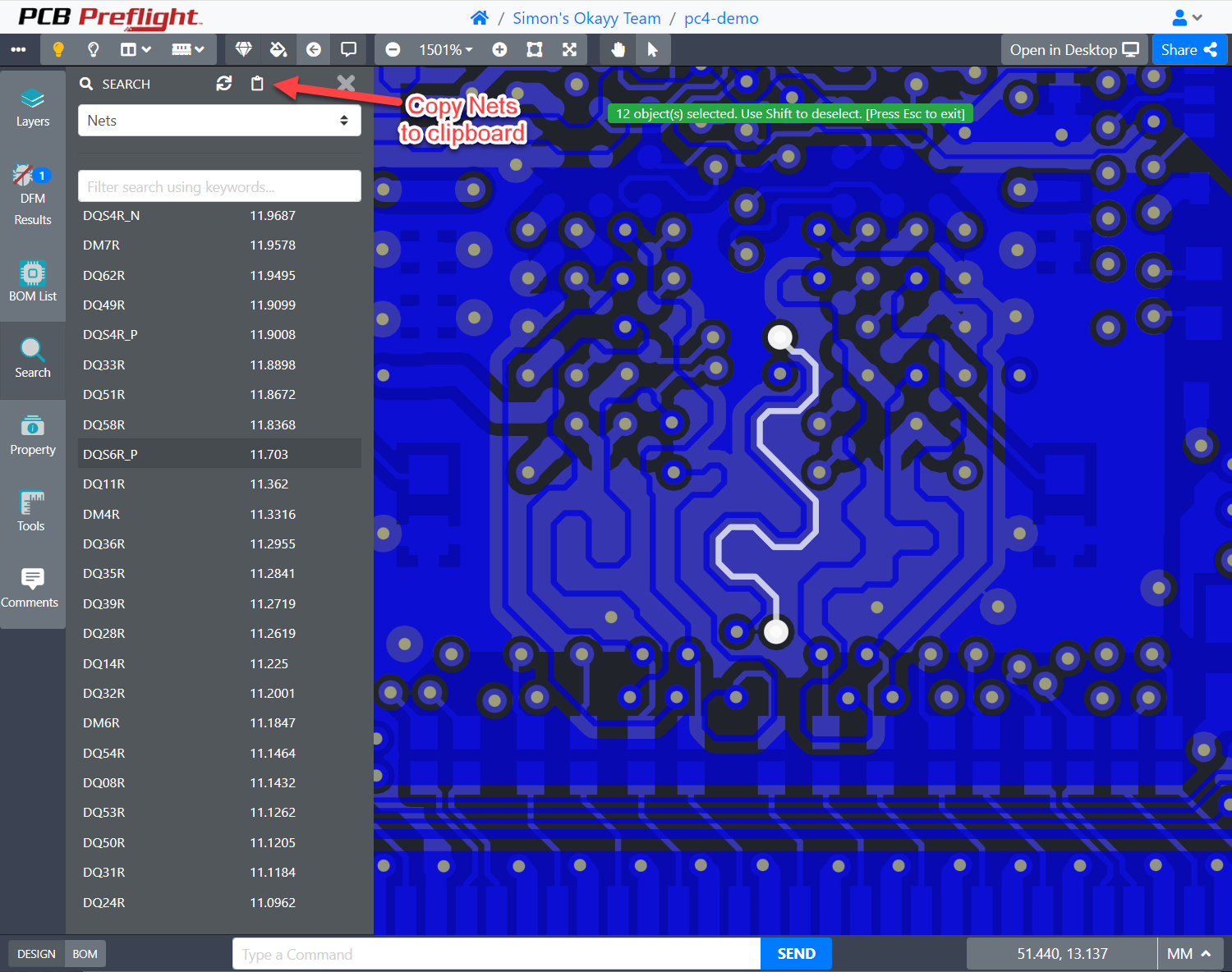

3. Use the pull-down and select the object type: Nets
Note: All the Nets in the PCB design will now be visible, along with the Net list lengths.
Note: Press the Clipboard icon to copy the entire Nets Panel to a clipboard and paste into any documents or reports.
Filter: Use the real-time filter to isolate specific nets that you wish to review.
Sortable columns: The objects list is fully sortable.
