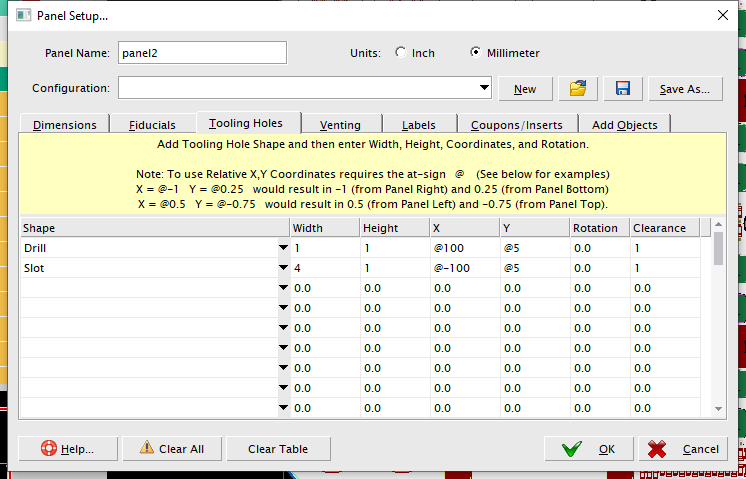

Add NC Tooling Holes and then enter Width, Height, Coordinates, and Rotation.

Available Tooling Hole Shapes:

Drill - A circular hole (not plated)

Slot - A drilled slot .

Width:

The width to use for the tooling hole.

Height (for Slots only):

The height to use for the tooling hole.

Center Point X, Y :

Assign the center point for the tooling hole.

Relative X,Y Coordinates are supported:

You may use Relative X,Y Coordinates requires the at-sign @    (See below for examples)

X = @-1   Y = @0.25   would result in -1 (from Panel Right) and 0.25 (from Panel Bottom)

X = @0.5   Y = @-0.75   would result in 0.5 (from Panel Left) and -0.75 (from Panel Top)

Rotate (for Slots only):

Assign the rotation (in degrees) for the slot.  Default is 0.0.

Clearance:

Add a clearance around the tooling hole.  Set 0 for no clearance.

FAB versions 8.3/8.4 (listed above) were released 3 years ago in 2022.  Any tooling hole issues will be resolved by upgrading.   If problems persist, please submit a support ticket and include any sample workspace file (*.wrk) with the Panel you're trying to create and we'll be happy to assist.   https://support.numericalinnovations.com/support/tickets/new
