Is there a way to find missing solder mask/solder paste openings on pads? Sometimes the padstacks are erroneous and are missing mask/paste definitions. It would be great if the DFM-checker could find these errors if possible.
0 Votes
3 Comments
Sorted by
S
Simon Garrisonposted
almost 7 years ago
Admin

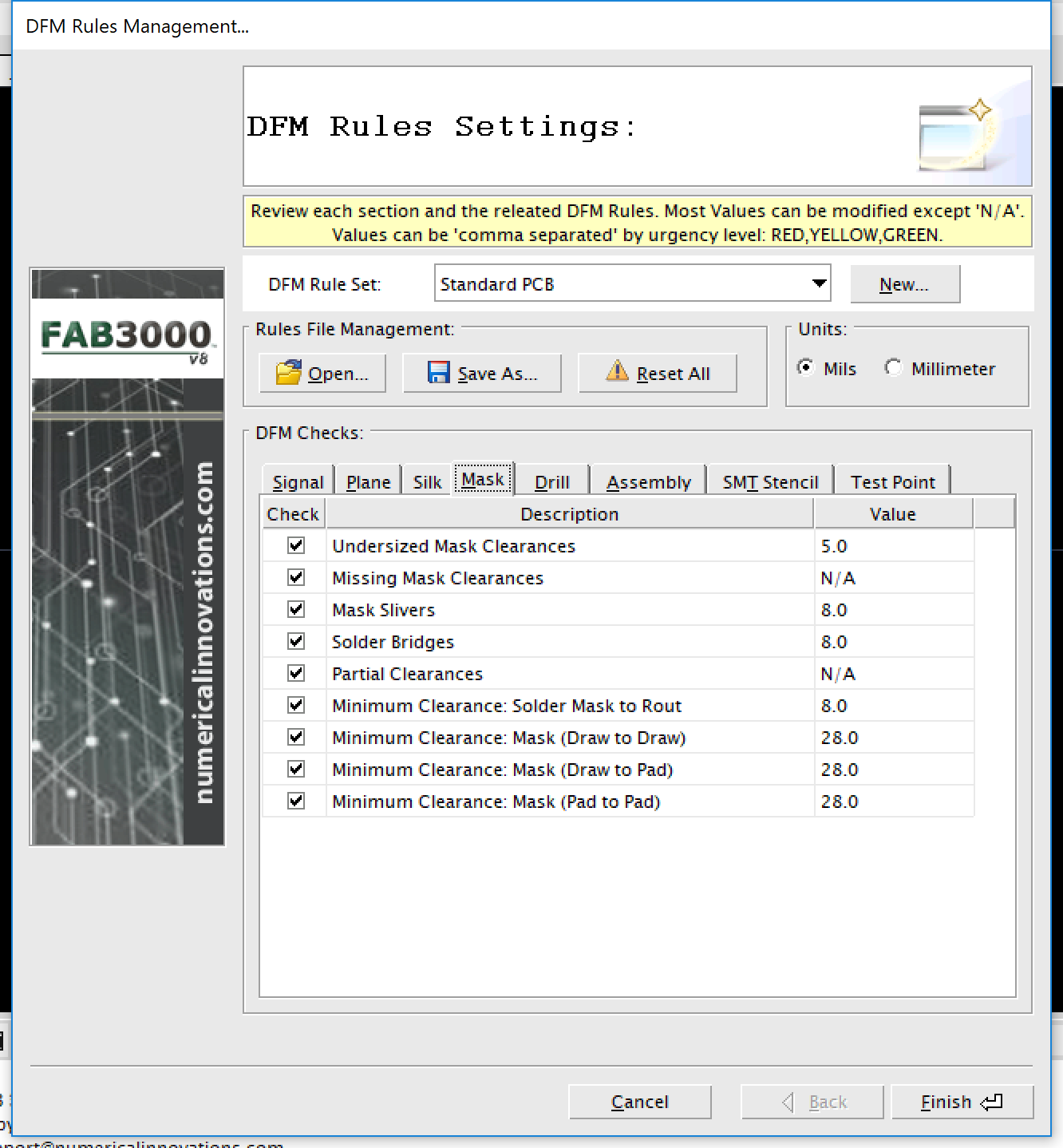

In the DFM Checker rules under "Mask", "Missing Mask Clearances" should be able to resolve the Mask issues. If for any reason that does not work, please submit a support ticket and include a sample workspace file (*.wrk). We'll be happy to review and determine what is occurring. https://support.numericalinnovations.com/support/tickets/new
0 Votes
L
Ludvig Sjöholmposted
over 6 years ago
It does not seem to help. I have attached a wrk-file where this is obvious, to support ticket #2133.
0 Votes
S
Simon Garrisonposted
over 6 years ago
Admin
Thanks. We will take a look at ticket #2133 for the sample file.
