            We have a project that requires conversion of 25m length PCB. Can FAB 3000 handle a PCB design with of those extents?

            Posted over 8 years ago by Simon Garrison

            Post a topic
            S
            Simon Garrison Admin
            Post a topic

            You can actually modify the FAB 3000 database to allow up to 1000m length.  Please perform the following:


            1. Start FAB 3000.
            2. Go to menu: Setup / Options..
            3. Select tab "Misc"
            4. Change the option "Design Database Extents" to "Large".
            5. Press OK and restart FAB 3000.

            You will now be able to easily load and modify extremely large length designs in FAB 3000.

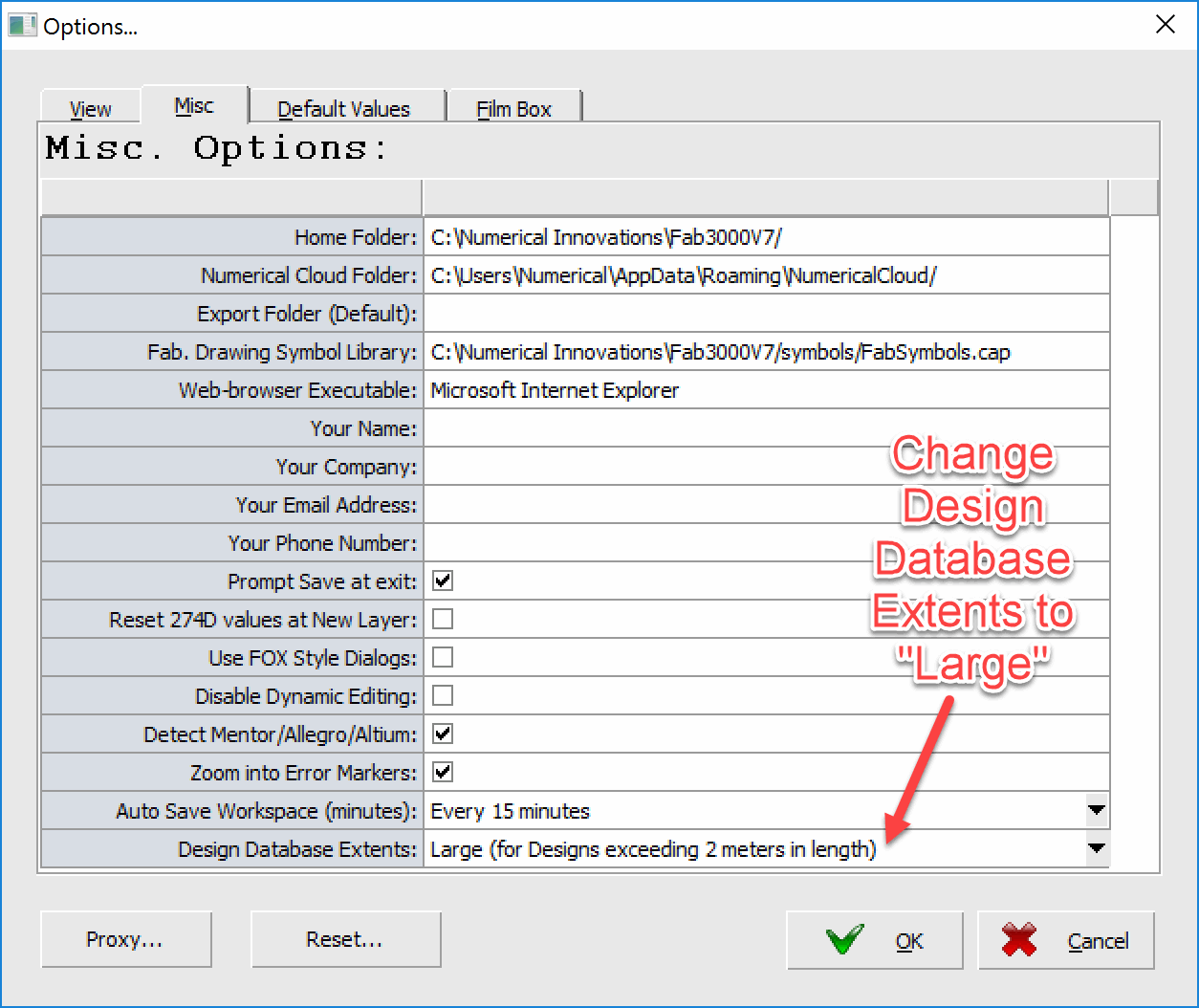

            (Screen capture of the FAB 3000 options...)
