Converting pads to have rounded corners?

Is there a way to convert either squares, rectangular, circular pads to be either a square or rectangle with rounded corners?
I tried converting them to flash to a define shape size to RectRounded but it does not nothing?
1 Comment

The easiest way is to use Draw to Flash (Automatic).  Please perform the following:

  1. Select Objects that you wish to convert to "Round Rectangle".
  2. Go to menu:  Tools / Draw to Flash / Automatic...
  3. Set "Shape for New Flashes" to "RectRounded".
  4. Set Minimum Flash size to 0
  5. Uncheck "Ignore Existing Flashes".
  6. Press OK, and all selected areas (either draw or flash) will be converted to Rounded Rectangle.

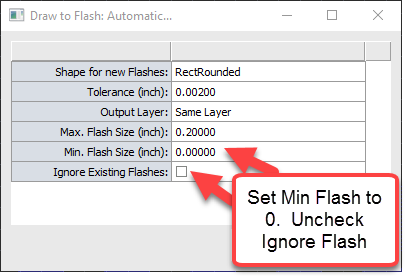

Note:  I attached a screen capture that I used.




Let me know if that helps.


Best regards,

Simon
