After my GDS → ODB++ conversion, the resulting geometry appears low resolution with jagged edges. Please help!

Please set the ACE Translator Database Accuracy to: Micro (1/10 Nanometer), and then try the conversion again.

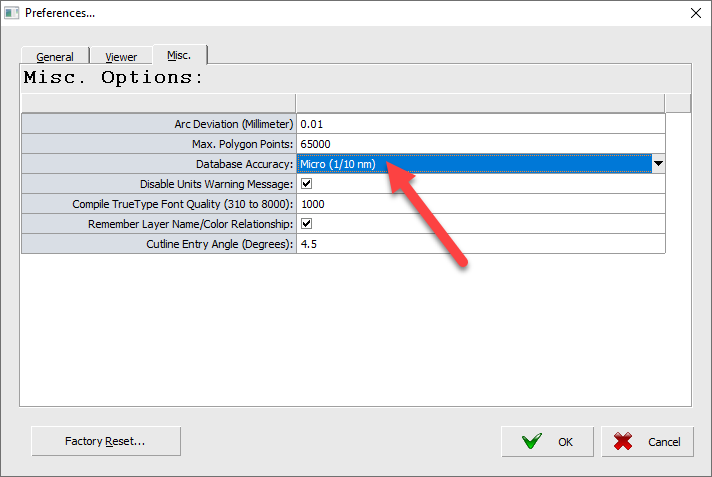

1.     Go to menu:  Setup > Preferences...
2.     Select tab Misc
3.     Change option Database Accuracy to Micro (1/10 Nanometer)
4. Perform the same conversion again, and you should see better results in the ODB++.

Note: Here's more information, https://numericalinnovations.freshdesk.com/support/discussions/topics/14000004648

Thanks again, and please let us know if you have any other questions.

Numerical Innovations Team
