I'd say my only complaint is that when exporting an IPC2581 there doesn't seem to be an option for .xml format, which is unfortunate because our workflow revolves around .xml specifically.

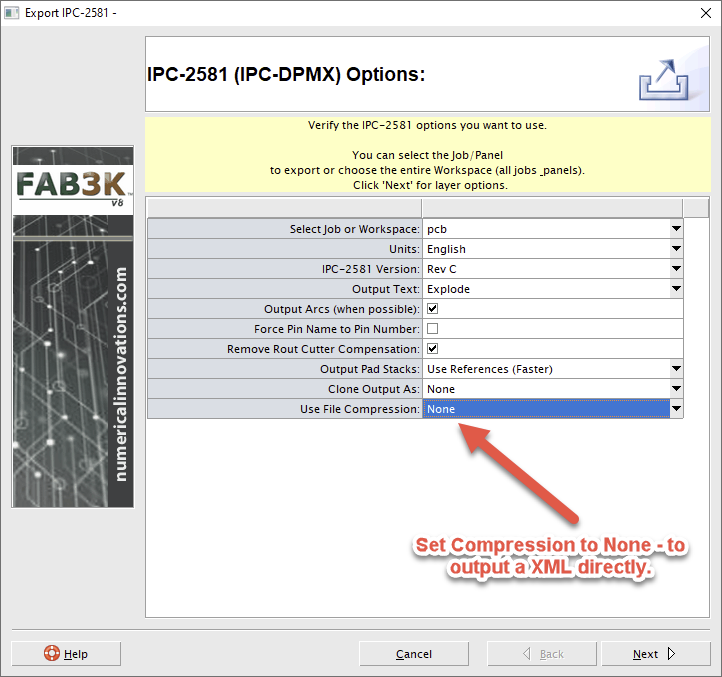

To export an IPC-2581 / XML, please perform the following:
Select None for the option: Use File Compression.
Change the file extension from *.cvg to *.xml (cvg used to be a common extension for older IPC-2581 files - but it's really an XML file).
I'd say my only complaint is that when exporting an IPC2581 there doesn't seem to be an option for .xml format, which is unfortunate because our workflow revolves around .xml specifically.
To export an IPC-2581 / XML, please perform the following:
Here's a quick tutorial video (no sound) showing those steps and viewing the resulting XML, https://numericalsoftware-update.s3.us-east-1.amazonaws.com/tutorials/2026-03-20_13-26-17-xmlexport.mp4
Thanks again.
Simon
