During export the pth file is missing the path for the slot. How can I avoid this problem? The figure shows the missing slot.

Posted about 2 months ago by Simon Garrison

Post a topic

Simon Garrison Admin

Thanks for sending the sample file.

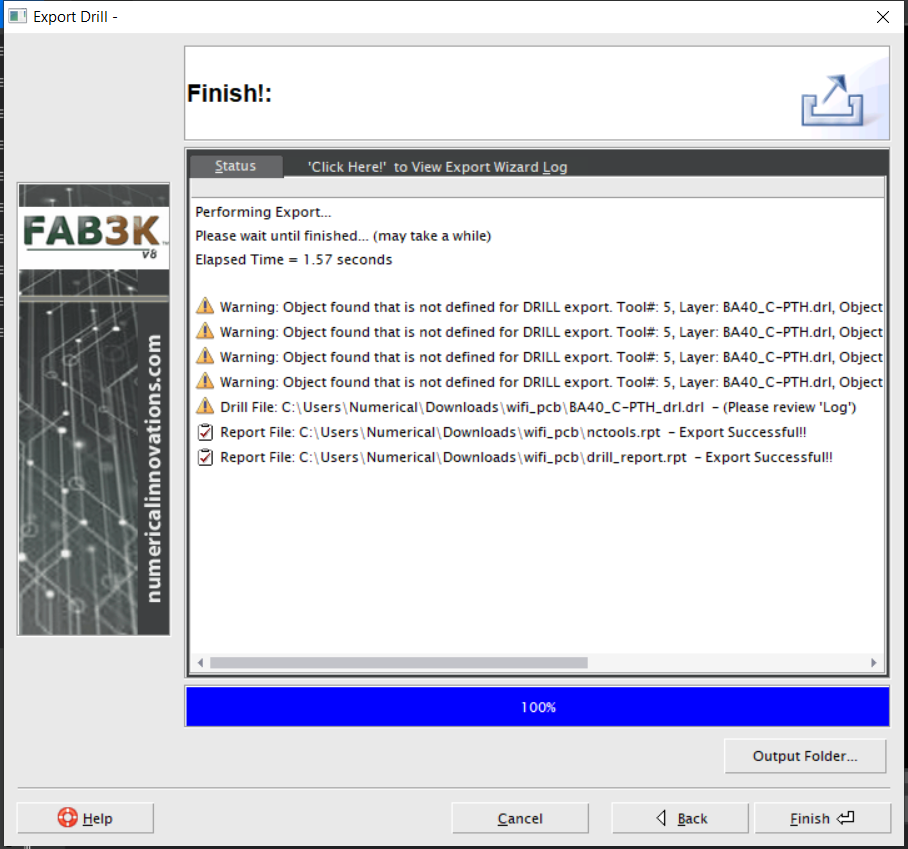

Those slots are actually a NC rout/mill path (and not defined as a drilled slot). During Drill Export FAB3000 will output an error messages if it finds an invalid drill object (for those 4 slots missing),

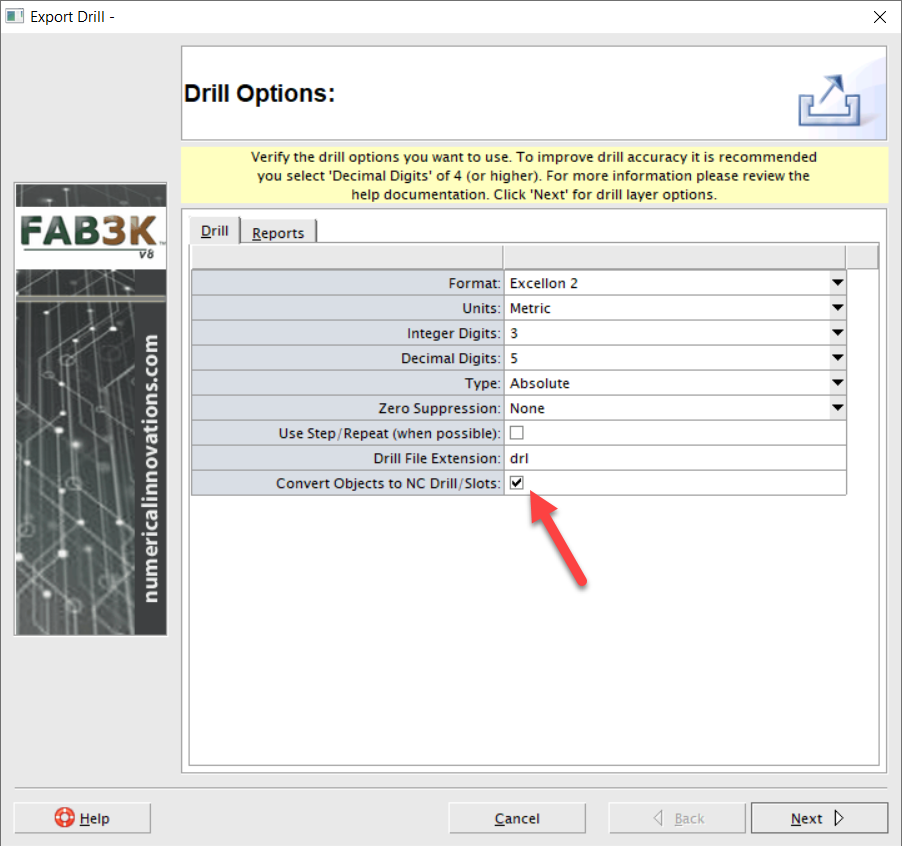

To export NC Routs in a drill file, you will need to select the option Convert Objects to Drilled Slot (see below),

Or use the NC Editor command menu, Tools > Convert to Drill Layer (will also output as drilled slots).
