How can I change a selected component's to reference a different package name.

You may use the command Properties... (menu: Edit | Properties...) to change any selected object properties and/or attributes.


To change the Package for any selected component(s), perform the following:

  1. Select the Component(s) you wish to change to a different Package name.

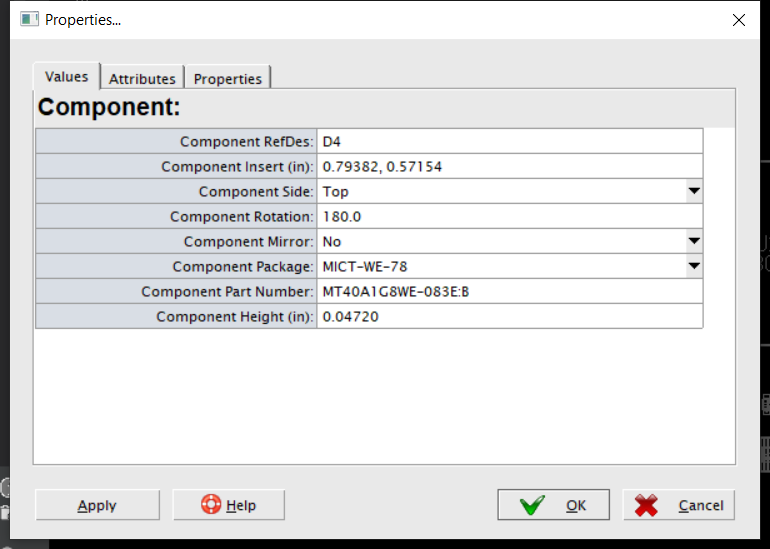

  2. Go to menu:  menu: Edit | Properties...
    • Multiple Components:  If two or more components have been selected, the Package Name value will be empty.
  3. Use the dropdown to select the Package Name ( to reference for all selected components).
  4. Press OK, and to all selected components will now reference the different Package name.


Here's a quick tutorial movie demonstrating how to change a components Package.

https://numericalsoftware-update.s3.us-east-1.amazonaws.com/tutorials/2024-09-30_16-15-48-change-package.mp4
