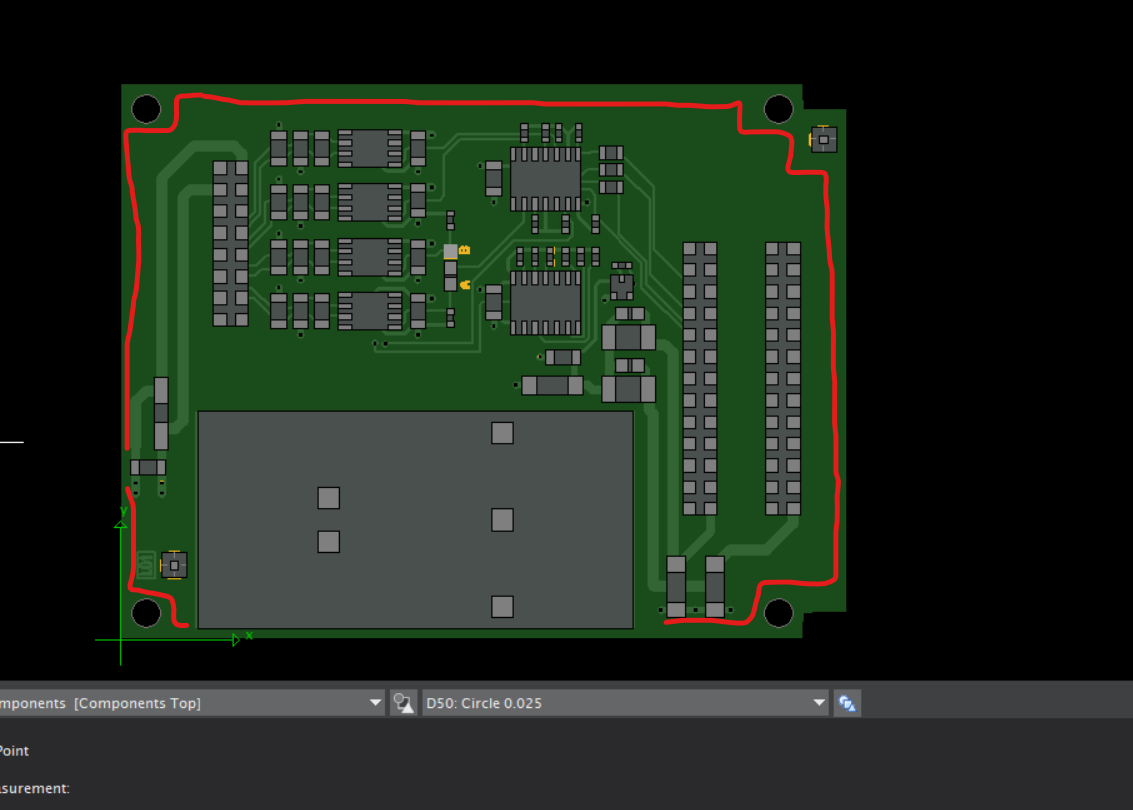

Just a quick one, is there a function in FAB 3000 that would allow me to know the total length of a line, perhaps one I’ve drawn. Kind of like the measure function point-point, but multiple points? I was hoping to calculate the ‘real world’ length of the red lines so I can estimate a volume of a product used along those lines.
0 Votes
1 Comments
S
Simon Garrisonposted
over 3 years ago
Admin

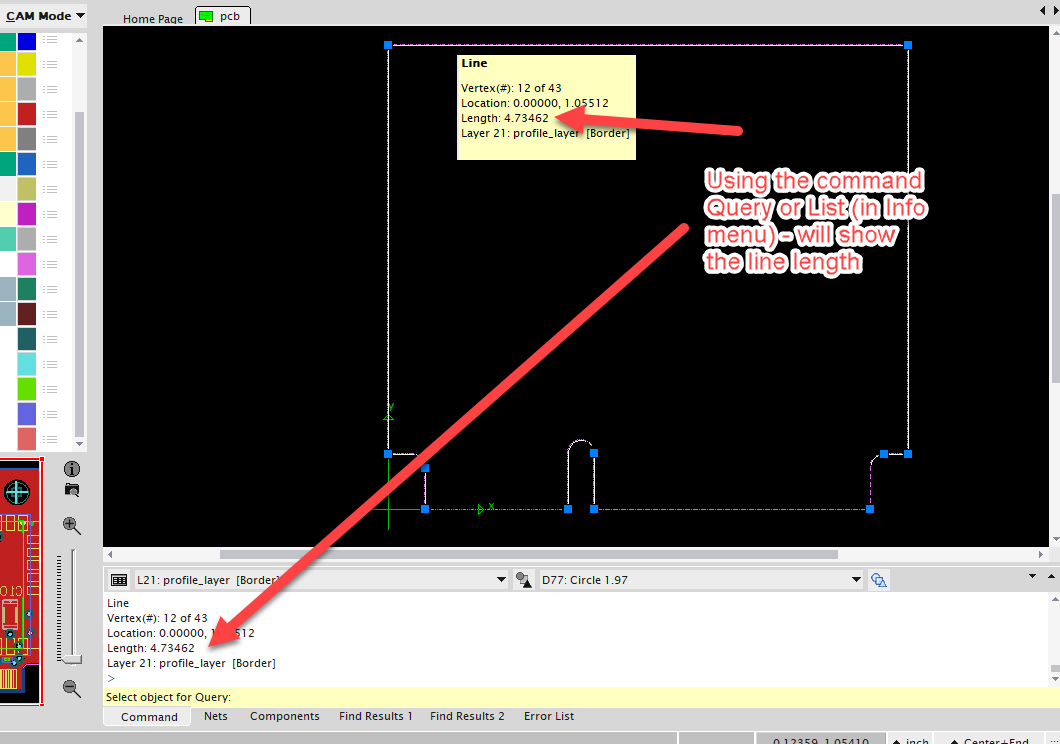

Go to command Query (menu: Info | Query...).
Select any line
The total length will be highlighted and also placed in the command window.
Note: You may also use the command List (menu: Info | List).
Just a quick one, is there a function in FAB 3000 that would allow me to know the total length of a line, perhaps one I’ve drawn. Kind of like the measure function point-point, but multiple points? I was hoping to calculate the ‘real world’ length of the red lines so I can estimate a volume of a product used along those lines.
0 Votes
1 Comments
Simon Garrison posted over 3 years ago Admin
Note: You may also use the command List (menu: Info | List).
