Where can I set default values for SMT Stencil Thickness, Area & Aspect Ratios that are used when I perform Query, generate reports, etc.

You can permanently set the default values for SMT Stencil Foil Thickness, Area Ratio, and Aspect Ratios in the Options dialog.  These is the default setting used everywhere from Reports, Query, List, etc.

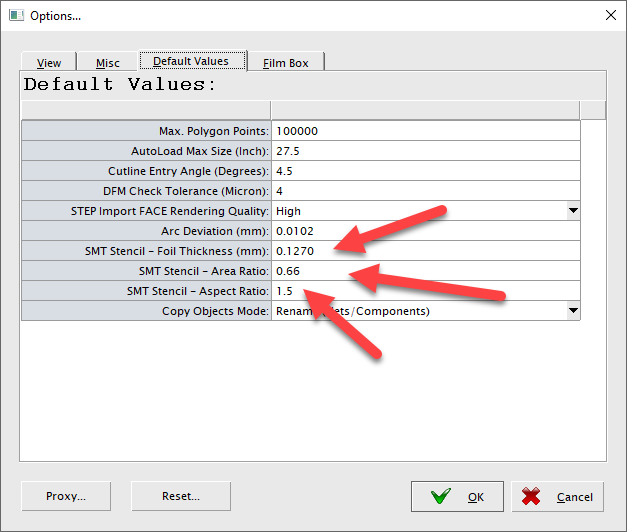

1. Go to menu: Setup / Options..., tab "Default Values"

2. SMT Stencil - FOIL THICKNESS:

Sets the default Stencil Foil thickness used everywhere from Reports, Query, List, etc. The default is 5 mils (0.127mm)

 3. SMT Stencil -  AREA RATIO LIMIT:

Sets the default  Area Limit used everywhere from Reports, Query, List, etc.  The default is 0.66

4. SMT Stencil -  ASPECT RATIO LIMIT:

Sets the default  Aspect Limit used everywhere from Reports, Query, List, etc.   The default is 1.5
