I am trying to convert from GDS II into DWG and the person who wants to open the DWG file does not succeed.

Posted over 9 years ago by Simon Garrison

Post a topic

Simon Garrison Admin

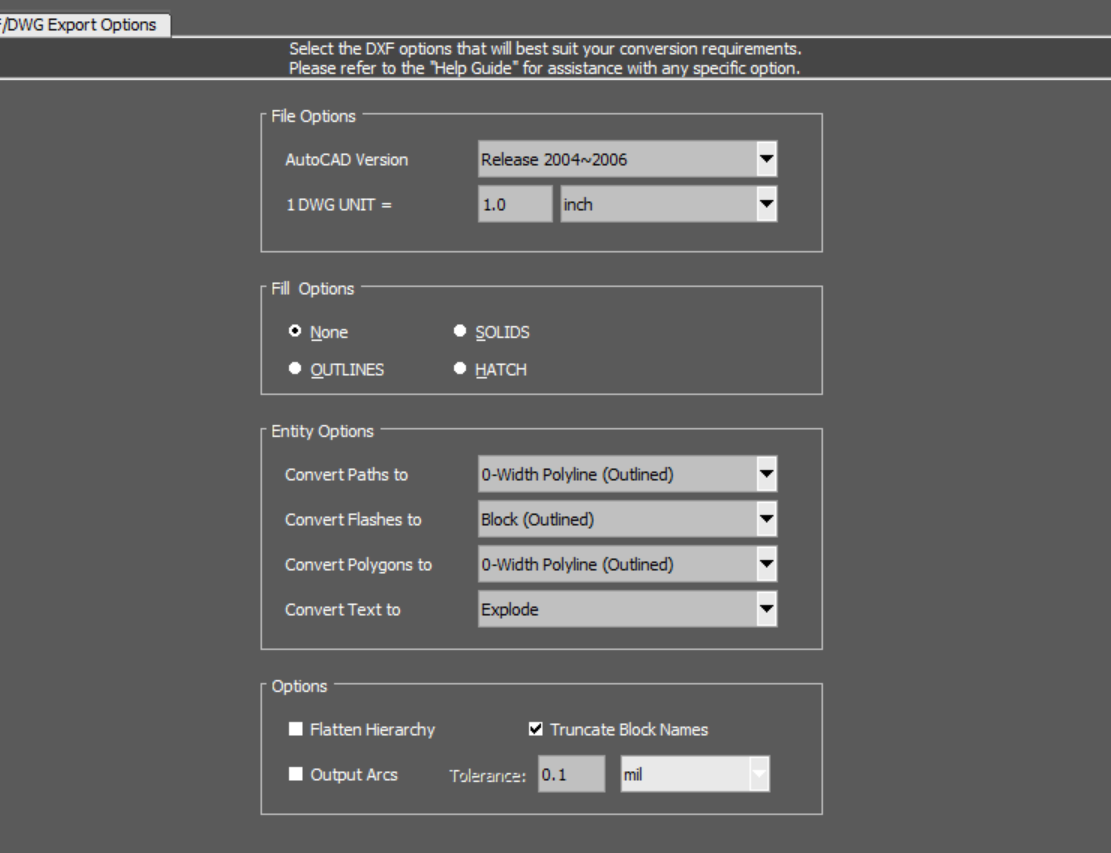

I am using the DWG export settings (see below). Could you convert the file please and tell which settings to use?

Thanks Ralf

0 Votes

2 Comments

Simon Garrison posted over 9 years ago Admin

I was successful converting your GDS to DWG, which I then importing into the popular free DWG tool Draftsight:

Note: The DWG appears to be valid and loads in all CAD tools on my computer.

Perhaps your person cannot import DWG with blocks or other entities. If so, you can check the option "Flatten Hierarchy" (during DXF Export options) and see if that helps.

Thanks again, and let me know you results.

Best regards,

Simon

0 Votes

Simon Garrison posted over 9 years ago Admin

Thanks for sending a sample file. I will take a look and get back to you shortly.

Do you know what software the person who wants to view the DWG is using? Have you tried sending that person a DXF file instead? DXF is exactly the same as a DWG except the ASCII version and compatible with any CAD software tool.

Thanks again.

Simon
